Our Work

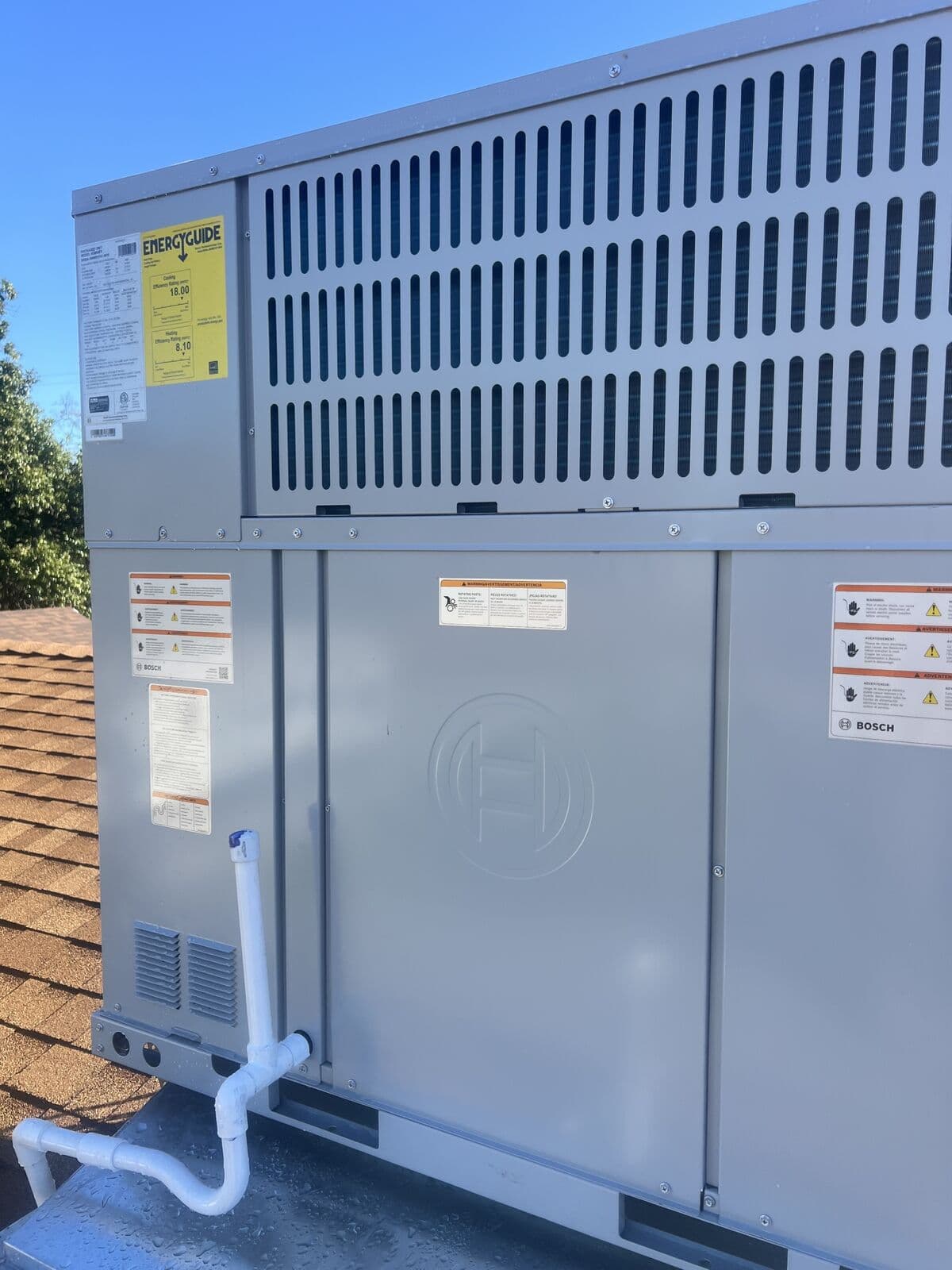

Bosch package heat pump set on the roof of a Citrus Heights home, replacing the old gas package unit. Heating and cooling both run off this one unit now, so there is no gas appliance left up there. Condensate drain re-piped down the side of the cabinet and the existing ductwork tied back in at the same openings. More of our work -> hvacpulse.com

Rooftop package unit replacement in Carmichael. We removed the old unit and installed a new Goodman packaged system on a fresh curb with new flashing, routed the condensate drain, reconnected the gas line and electrical disconnect, and tied the ductwork back in underneath. Call (916) 850-2221 to schedule service.

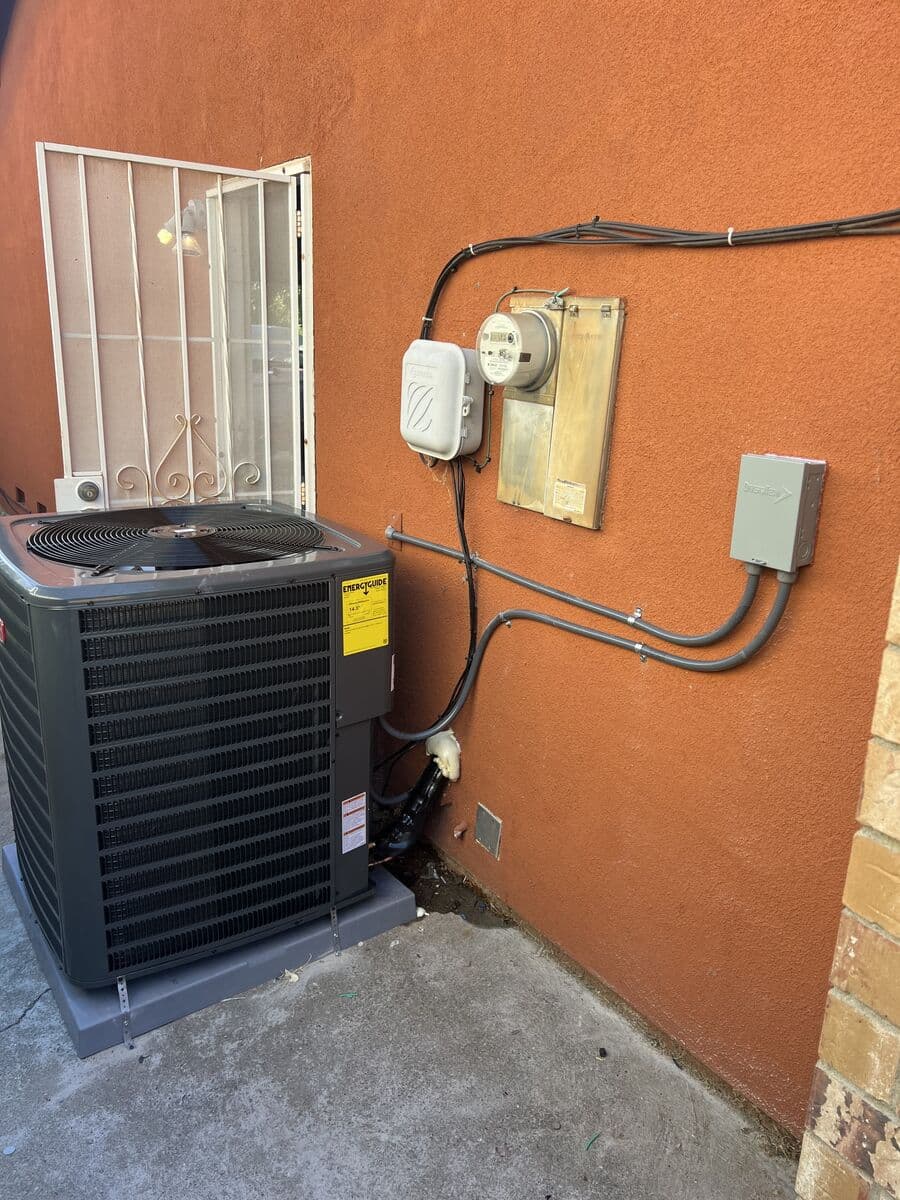

New AC condenser installation in Sacramento. The old system was replaced with a 14.3 SEER2 unit set on a composite pad, with a new electrical whip, disconnect, and sealed line set connections. Call (916) 850-2221 to schedule service.

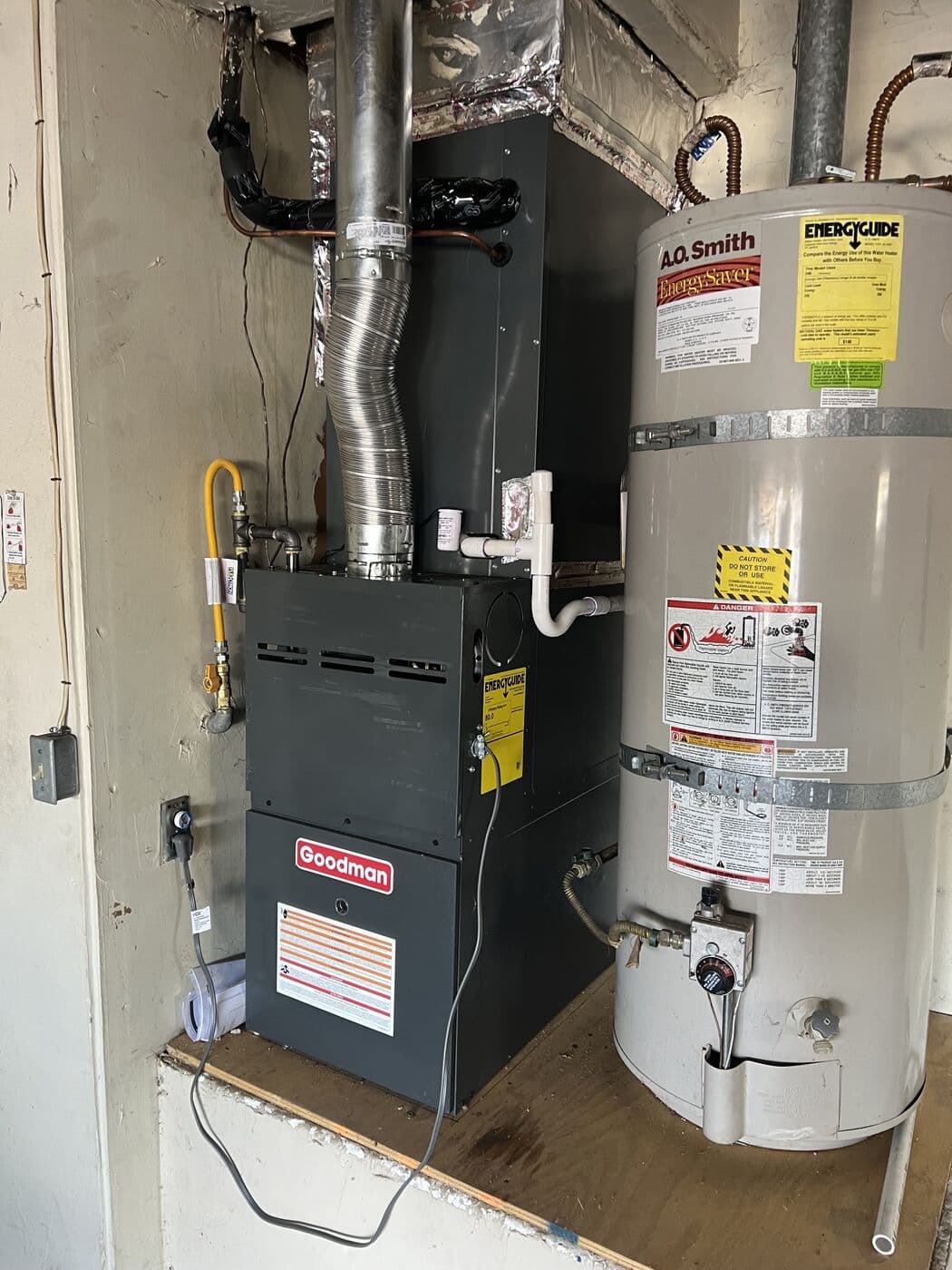

Furnace and evaporator coil replacement in Sacramento. We removed the old equipment and installed a Goodman gas furnace with a new evaporator coil, plus a new flue connector, gas line, and condensate drain. Call (916) 850-2221 to schedule service.

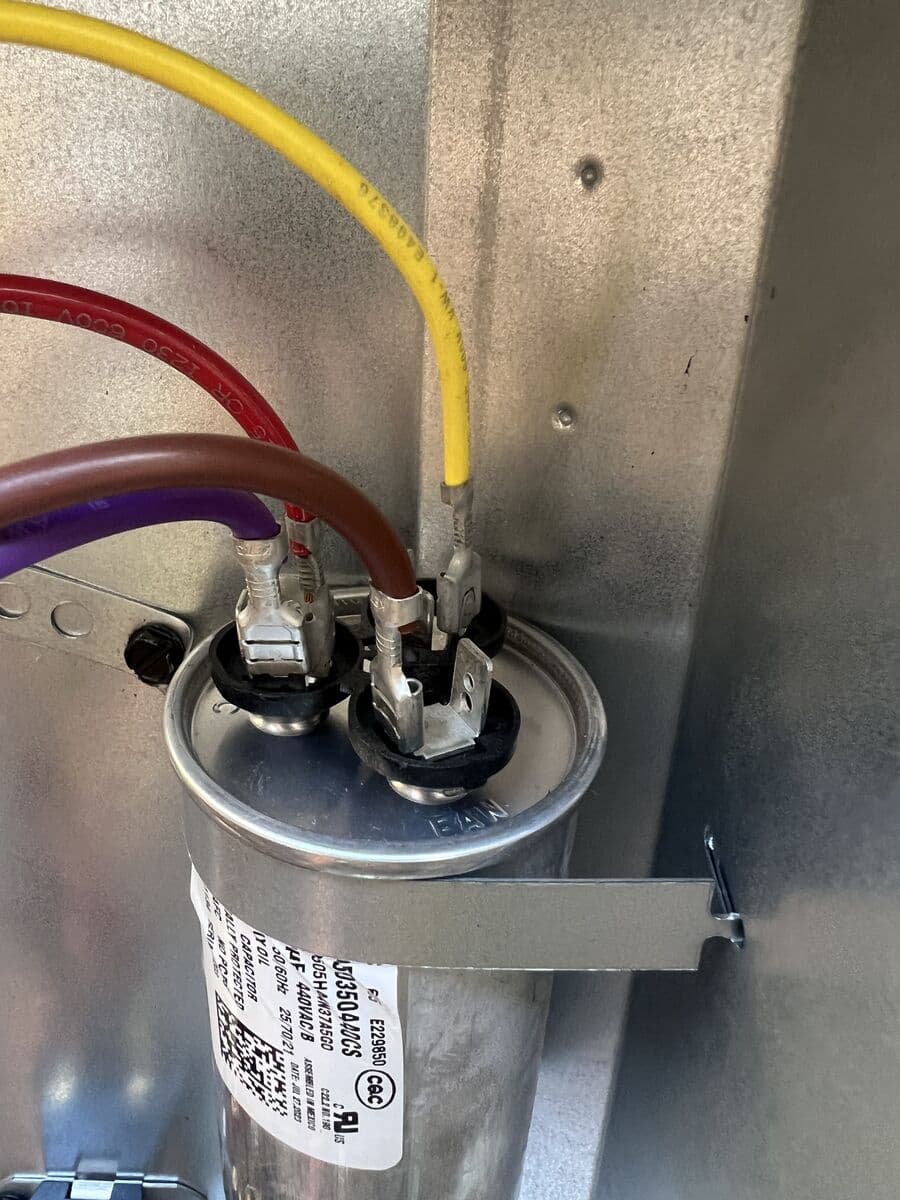

Compressor wouldn't start on this AC condenser in Sacramento. We traced it to a failed dual run capacitor, installed a new 35/5 MFD 440V capacitor, and reconnected the fan, herm, and common leads to get the system running properly again. Call (916) 850-2221 to schedule service.

Refrigerant leak on this AC condensing unit in Sacramento. We opened the cabinet, traced the leak to a fitting on the line set, brazed the joint, and pressure-tested the system before recharging. Call (916) 850-2221 to schedule service.

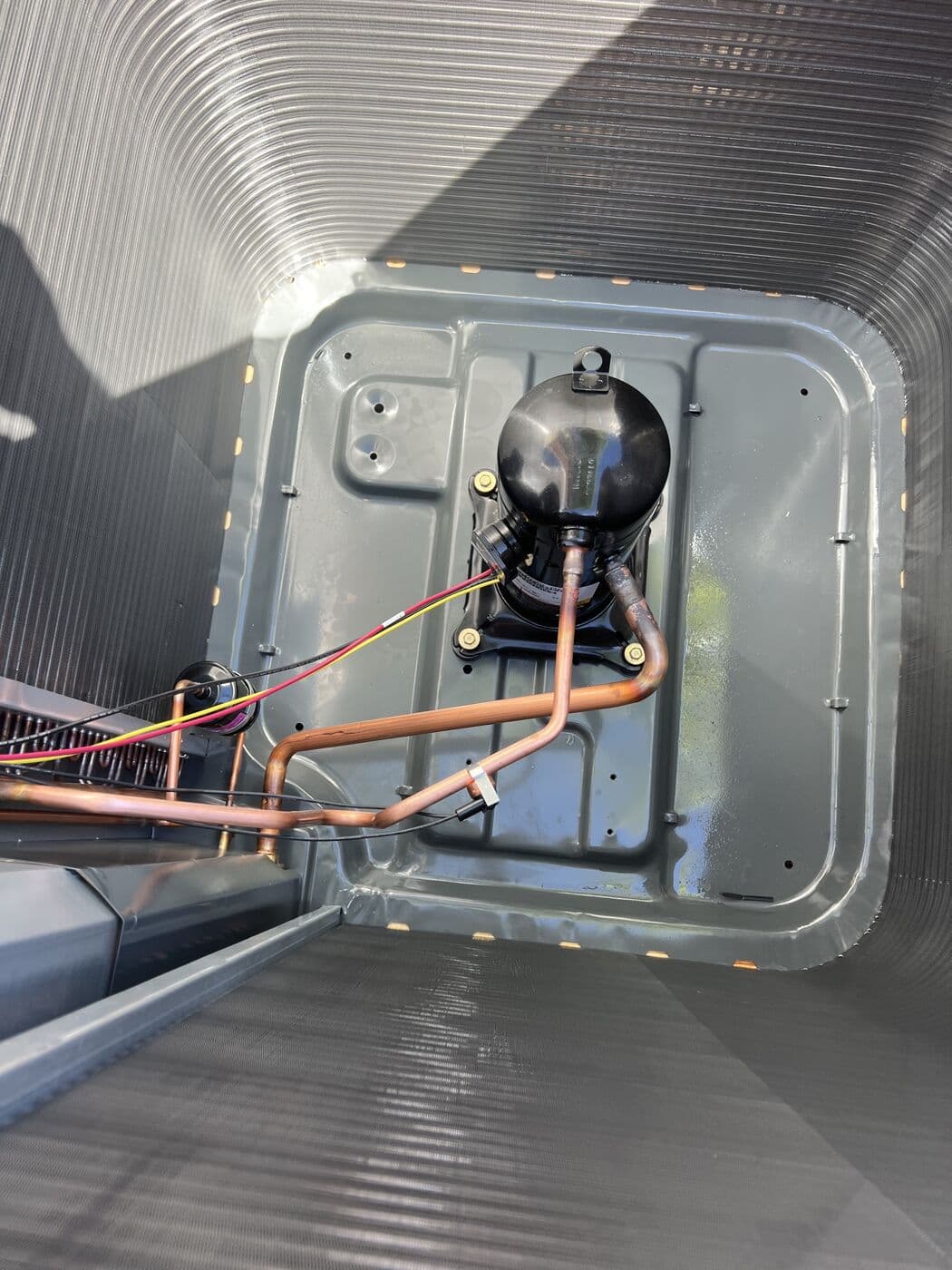

Compressor replacement on an outdoor AC condensing unit. The original compressor had failed, so we pulled it, brazed in new copper lines, and wired up the replacement before recharging the system. Call (916) 850-2221 to schedule service.

New Ruud rooftop package unit installed in Sacramento. Full swap-out on this commercial roof - new unit set, condensate drain, and gas connection all tied in and ready to run. See more at www.hvacpulse.com

Blower motor replacement on an air handler. The original motor had failed, so we set the new drop-in replacement on the deck, moved the mounting legs and rubber isolators over, and matched it to the existing blower wheel and housing before it went back in. A failing blower motor usually shows up as weak airflow at the registers well before the system quits altogether. See more at www.hvacpulse.com

AC split system and furnace replacement in Sacramento. The old equipment came out and a new gas furnace and a matched evaporator coil went in, with the plenum and flue reworked to fit the new cabinet. Andrew had it running the same day. More of our work -> www.hvacpulse.com

Rinsing out the condenser coil fins during a routine AC maintenance and tune-up. A clean coil keeps the system running efficiently through the summer heat.

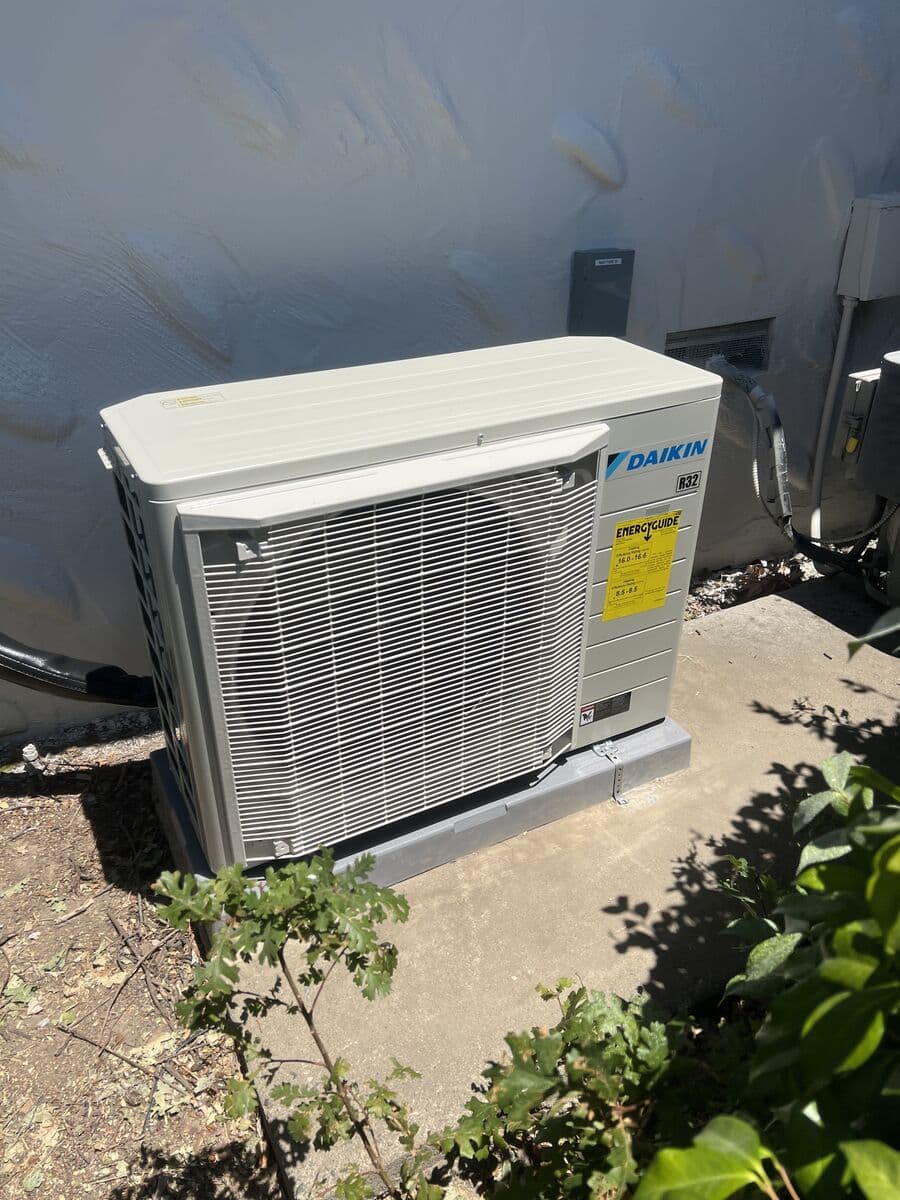

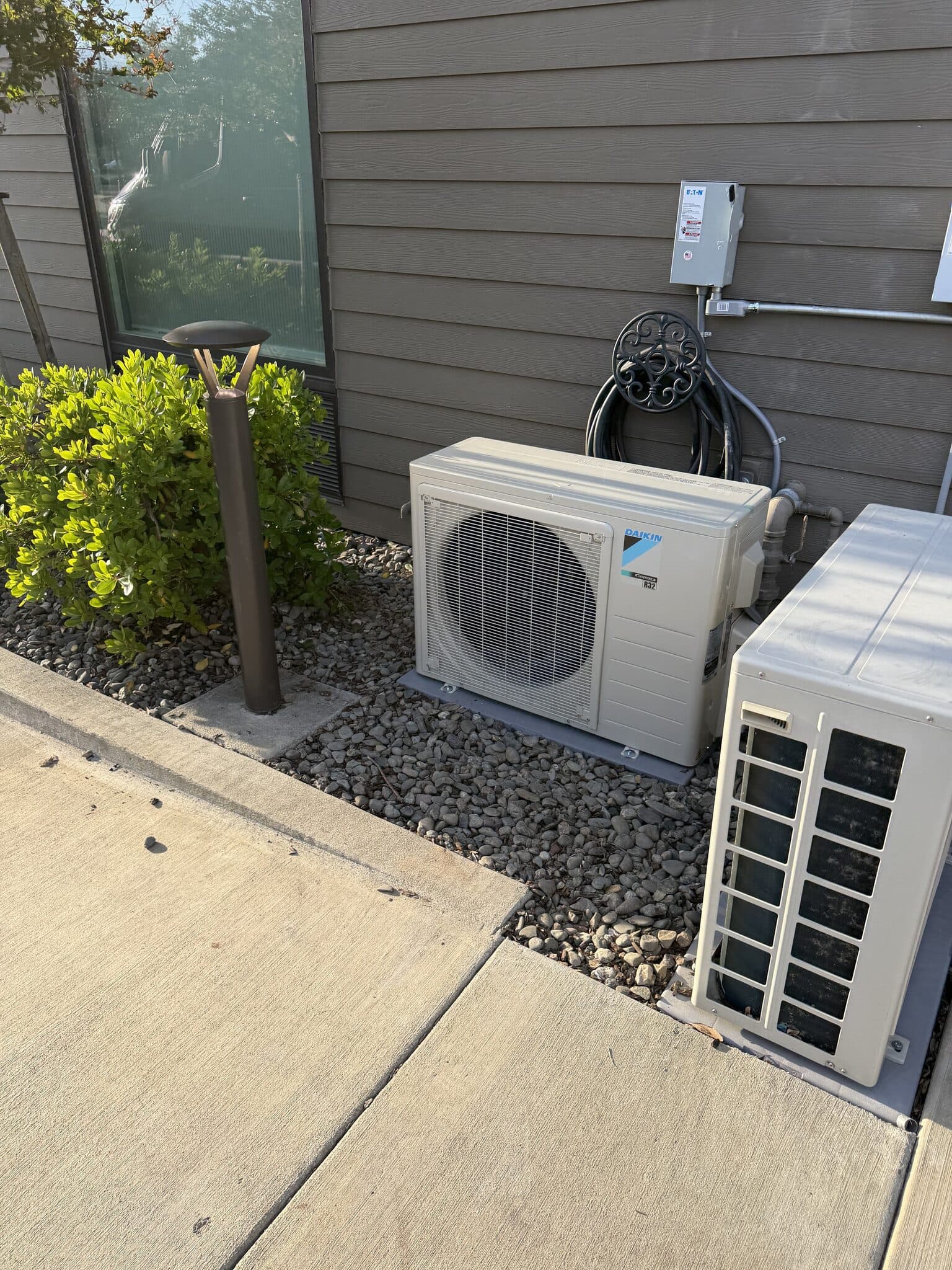

New Daikin mini split condenser installed in Sacramento — R32 refrigerant, set on a dedicated pad against the exterior wall with a clean disconnect and line run. See more at www.hvacpulse.com

Refrigerant check on an older R-22 system — hooked up the gauges to verify charge levels before topping it off. R-22 keeps getting harder to source as it's phased out, but a correct charge is still what actually determines how well the system cools.

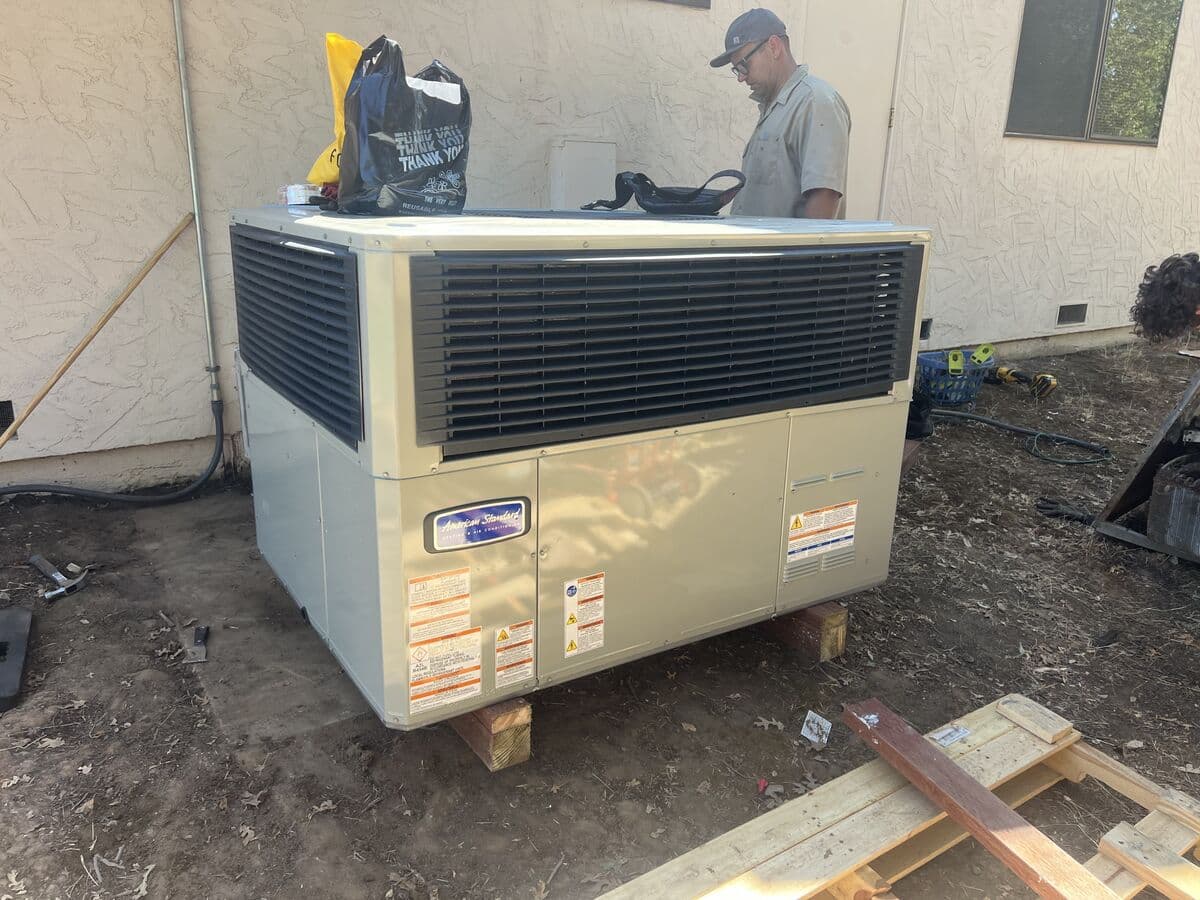

New American Standard package unit set and leveled for a home in Rancho Cordova. These self-contained units handle heating and cooling in a single outdoor cabinet — a solid fit for properties without room for a full split system.

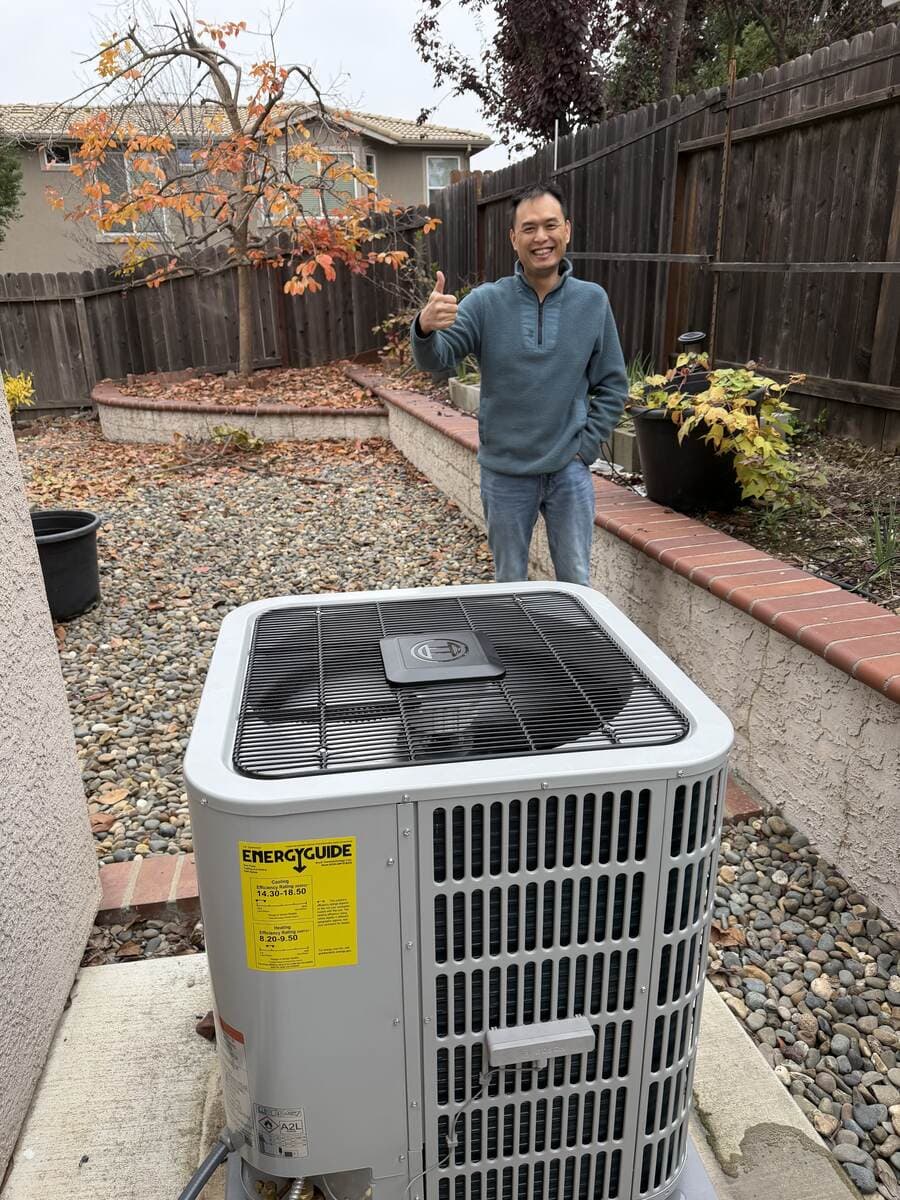

New heat pump condenser installed and running in a Sacramento backyard. A high-efficiency system rated up to 18.5 SEER2 for cooling and 9.5 HSPF2 for heating, set on a fresh pad and ready for the season.

New heat pump air handler installed as part of a full system replacement in Antelope — evaporator coil and blower set in place before final connections and startup.

New Bosch heat pump condenser installed as part of a gas-to-electric conversion in Sacramento — old gas system out, high-efficiency heat pump set on a fresh pad.

New Goodman heat pump condenser installed for a customer in Sacramento — unit set on a fresh pad along the side of the house next to a stone paver path.

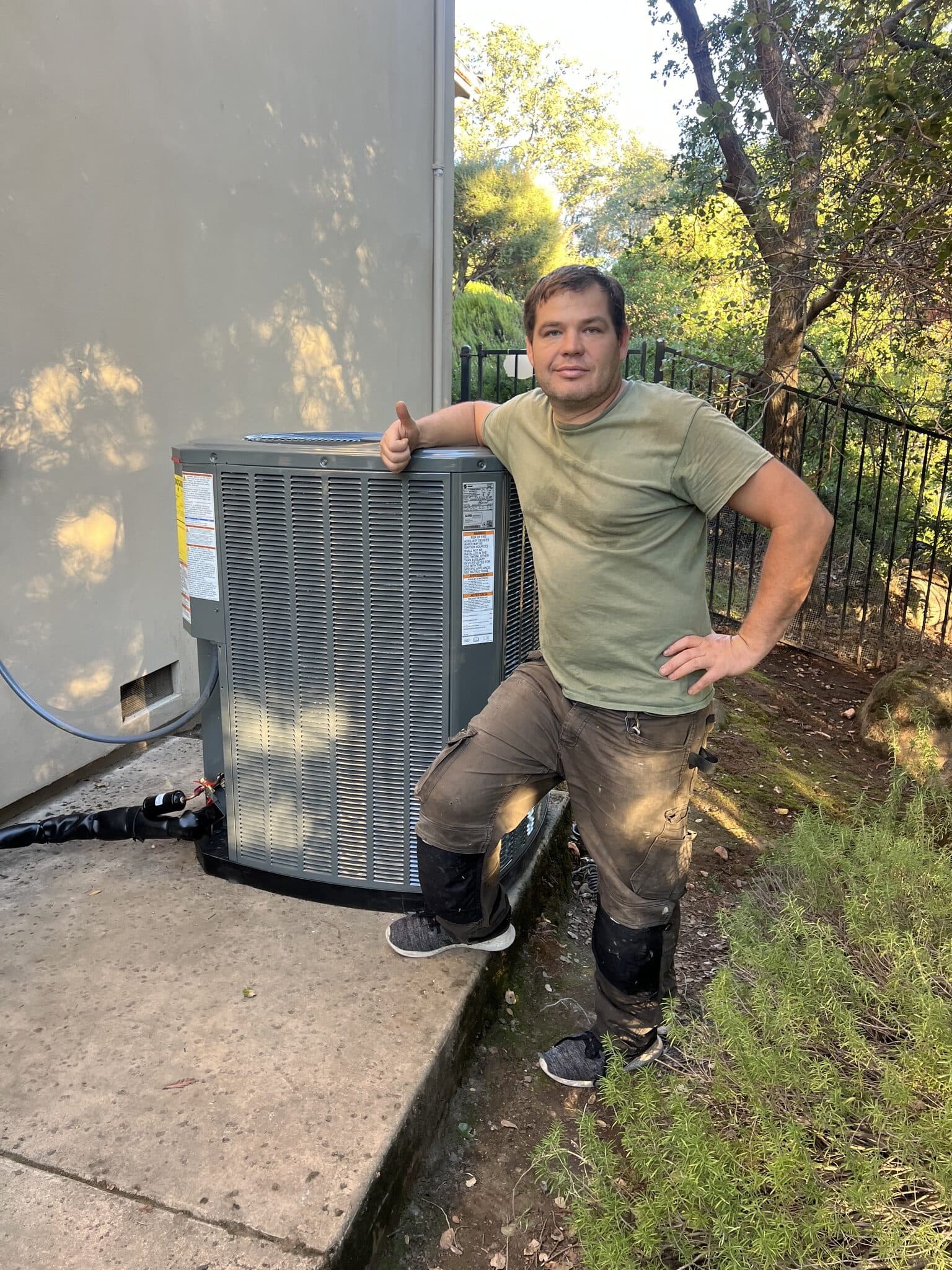

New AC split system installed for a customer in the greater Sacramento area — condenser set on a fresh pad along the side of the house, tucked next to the fence line for a clean finish.

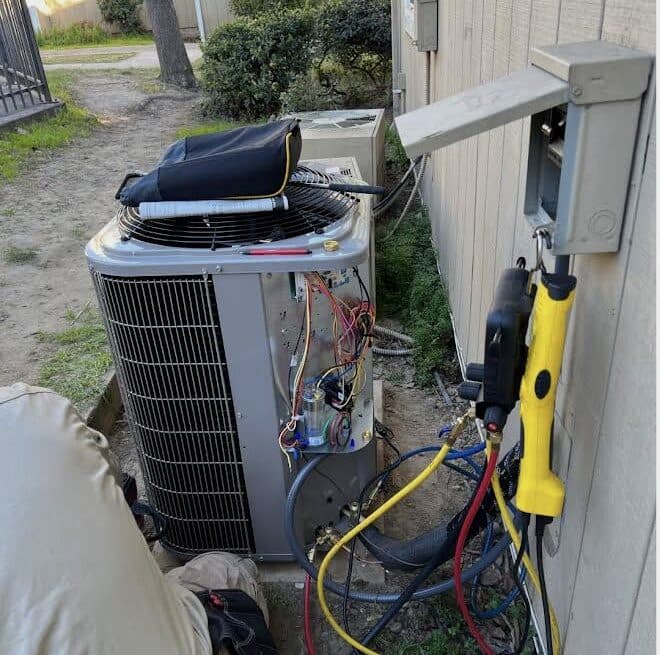

Diagnosing a refrigerant issue on this AC condenser in Sacramento — gauges hooked up at the disconnect to check charge and pressures before deciding on repairs.

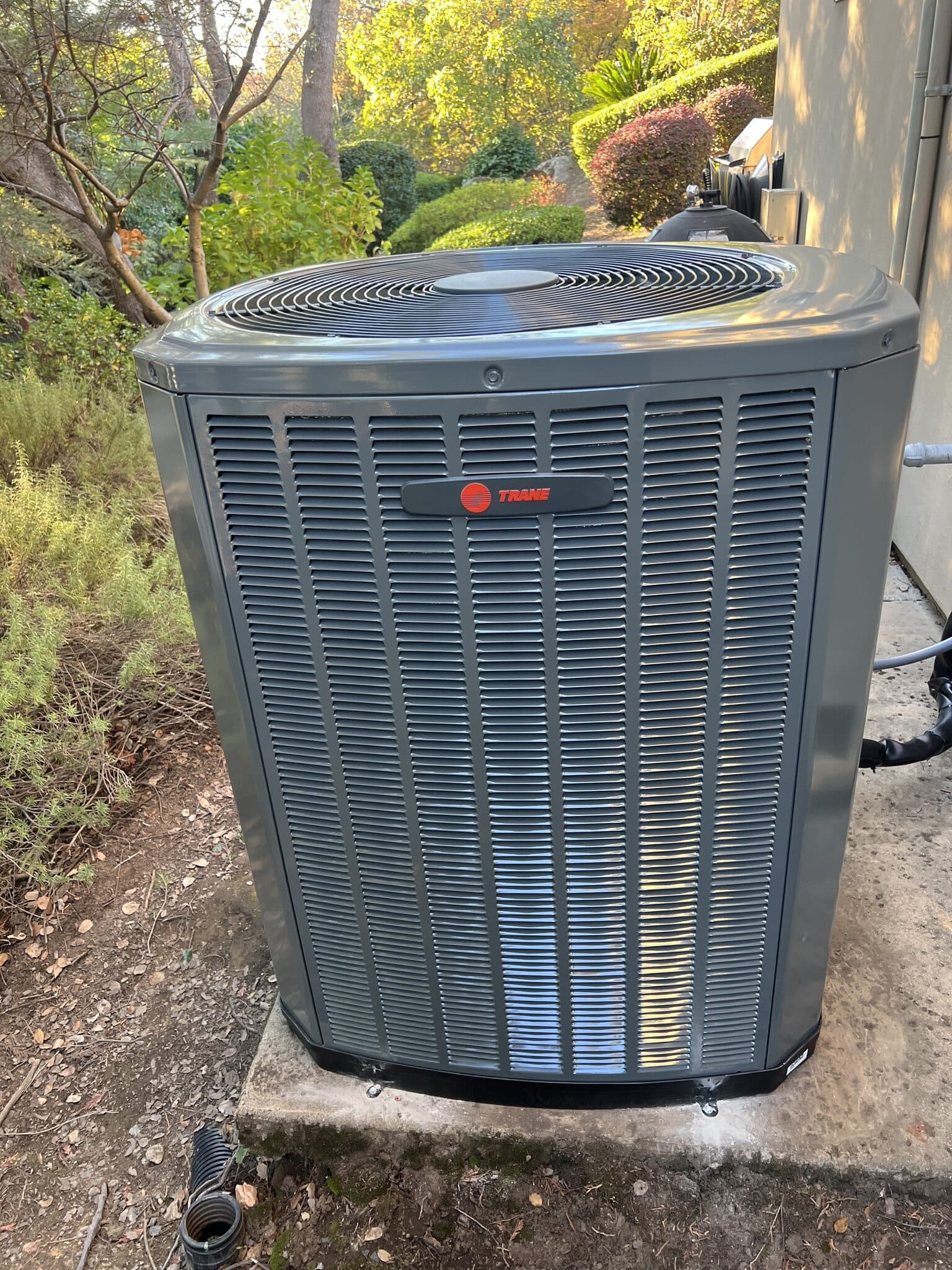

New Trane AC condenser installed for a customer in Granite Bay, set on a fresh pad next to the house.

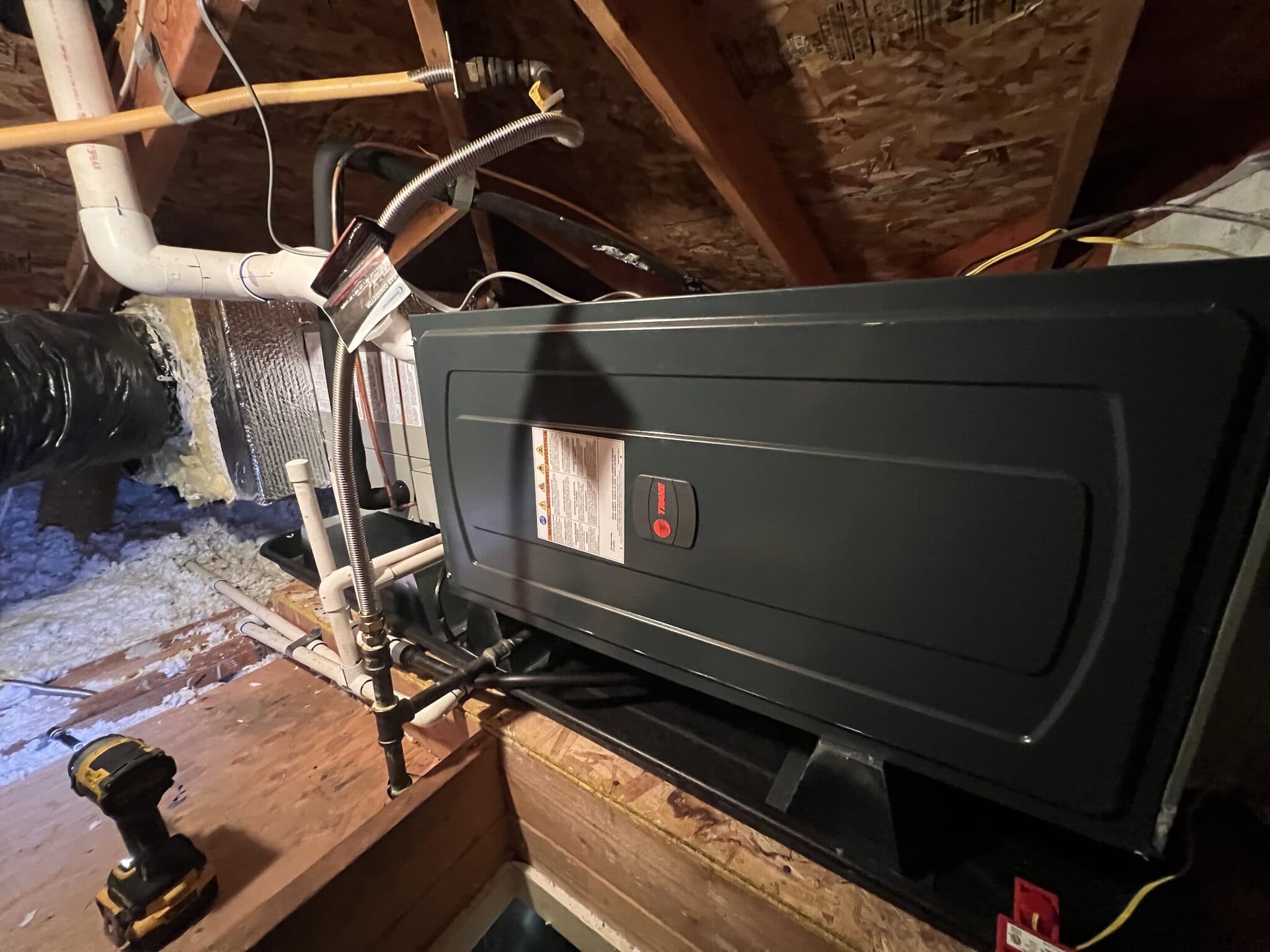

New Trane 96% efficiency furnace installed in a tight attic space in Rocklin, CA — tied into the existing ductwork and gas line for a full system replacement.

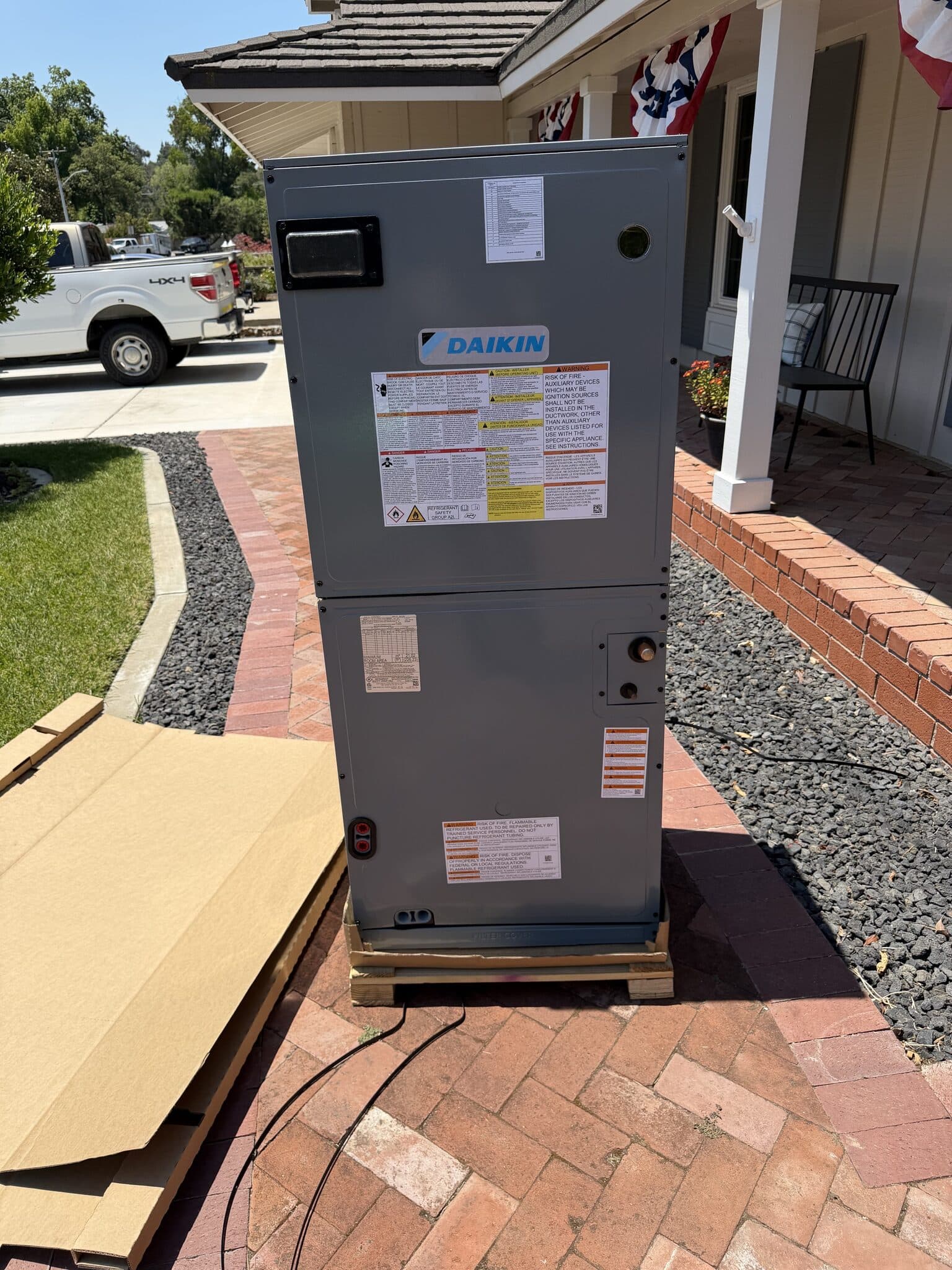

Wrapped up a gas to electric heat pump conversion in Sacramento. New Daikin system up and circulating air, hallway zone holding a steady 72.

New Trane package unit installation in Fair Oaks. Old unit came out and the new one went in on the driveway pad, with our tech fabricating a fresh sheet metal transition box on site to tie the ductwork into the new cabinet.

Rooftop package unit service call in Sacramento. We laid down walk boards first to protect the tile roofing before getting to work on the unit.

Indoor air handler replacement in a tight mechanical closet. Pulled the old unit and put in a new A2L refrigerant system with fresh insulated duct and copper line set. Solid install in a confined space. More of our work → www.hvacpulse.com

AC condenser replacement in the side yard. Old unit out, new one in — clean install on the pad with a fresh line set. More of our work → www.hvacpulse.com

Daikin R-32 mini split going in at a Sacramento home. Tucked the new condenser into the side yard next to the existing unit, ran conduit up to the disconnect box on the wall. Clean and done. More of our work at www.hvacpulse.com

Refrigerant line leak repair on this system — pulled back the old, weathered line-set insulation to reach the copper and brass flare connections, found the leak and sealed it back up. Small refrigerant leaks quietly drag down your cooling and make the compressor work harder, so catching them early saves wear and energy. See more of our work at www.hvacpulse.com

Got a closet taken up by your indoor air handler? We can relocate the unit up into the attic to free up that space, with clean ductwork, line sets, and proper condensate drainage. Reach out and we'll let you know what's possible for your home. See more of our work at www.hvacpulse.com

New Daikin heat pump going in on a gas-furnace-to-heat-pump conversion. We pulled the old gas furnace and set an all-electric Daikin system — quieter, more efficient, and it qualifies for a $3,000 SMUD rebate on the upgrade. See more of our work at www.hvacpulse.com

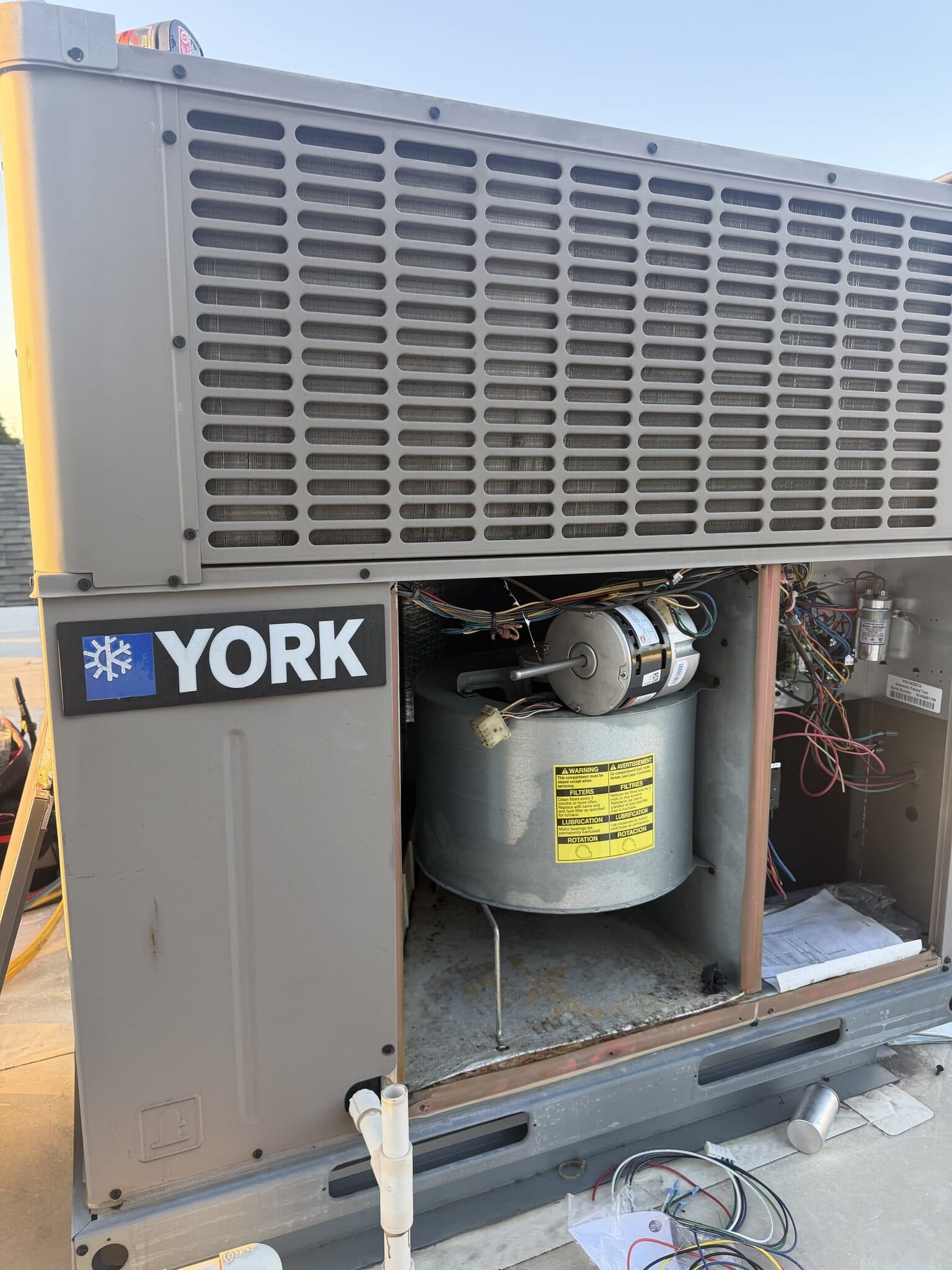

YORK package unit repair in the Sacramento area. The system came in with an airflow problem, which we traced to a failing ECM blower fan motor. We replaced the blower motor and verified proper airflow before closing it up — cooling and circulation back to normal.

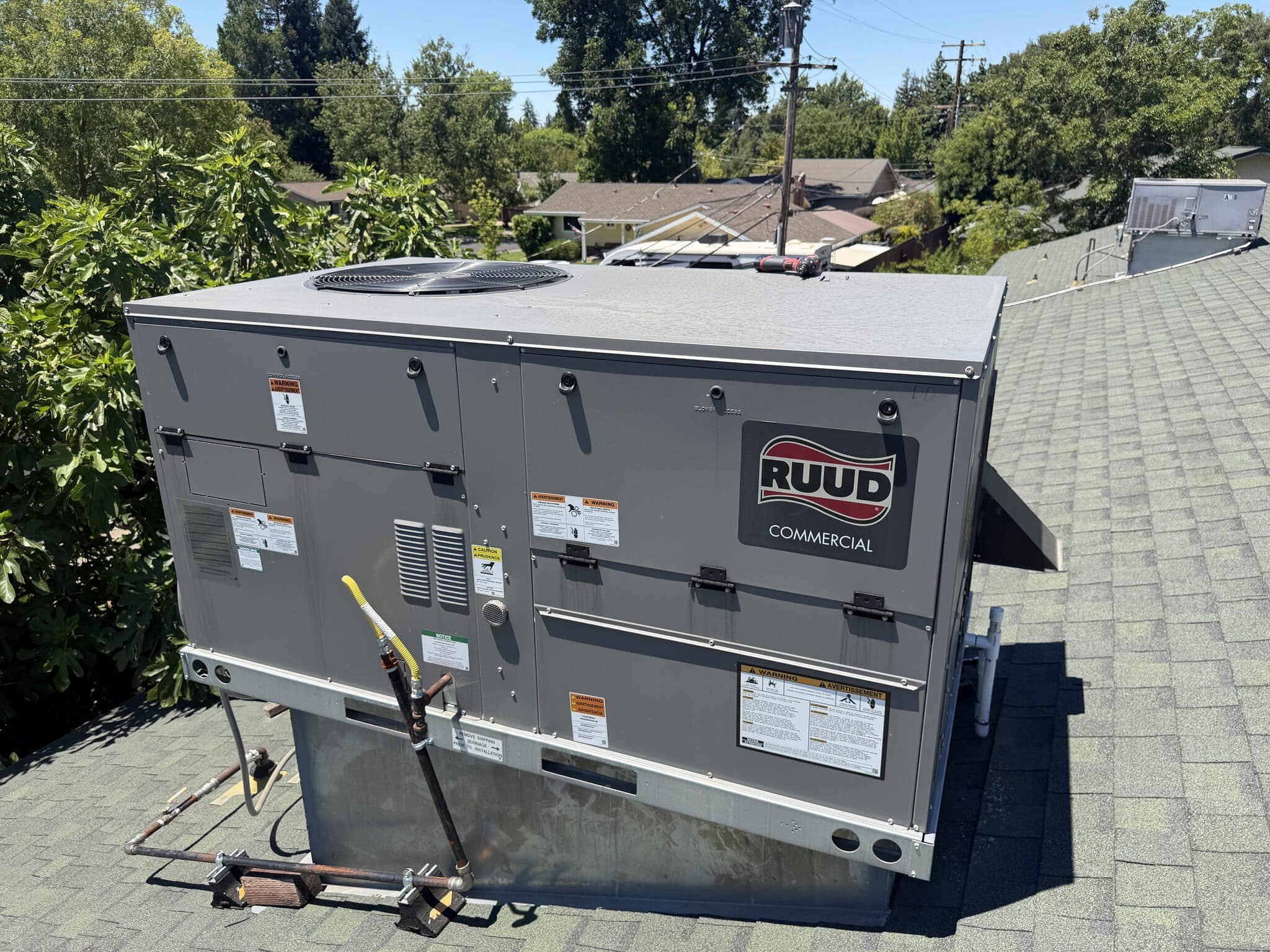

New RUUD Commercial rooftop package unit installed in Carmichael. We set it on the curb, tied it into the existing ductwork, and charged it up — one unit handling both heating and cooling for the space. Another commercial job done right.

AC split system replacement — new air handler installed in the attic, with a fresh line set and condensate drain run in clean. Another one done right.

Commercial rooftop package unit repair out in the Sacramento area. Boris pulled the access panel to check the compressor and dial in the refrigerant charge on the gauges before buttoning it back up.

Cool, quiet, and efficient. We just installed a brand-new Daikin R-32 heat pump for a local Sacramento-area home — compact, energy-smart, and built to keep this house comfortable in every season. Ready for reliable comfort and lower energy bills? Reach out to PULSE HVAC today for a free estimate.

Tight attic, clean install. Our team just completed a brand-new Trane split-system replacement, fit neatly into a super-tight attic space with crisp connections built to keep this Sacramento home comfortable all year. Thinking about upgrading your system? PULSE HVAC makes it easy — reach out today for a free estimate.
